| Model | ZN1035U5K5 | ZN1035U5K5A | ZN1035UCK5 | ZN1035UCK5A | ||||||
| Model Specification |
standard | luxury | flagship | luxury | standard | luxury | flagship | luxury | ||
| Drive Type | 2WD | 4WD | ||||||||
| Transmisson | 5MT | 7AT | 6MT | 7AT | ||||||
| Model | ZN1035U5K5 | ZN1035U5K5A | ZN1035UCK5 | ZN1035UCK5A | ||||||
| Model Specification |
standard | luxury | flagship | luxury | standard | luxury | flagship | luxury | ||
| Drive Type | 2WD | 4WD | ||||||||
| Transmisson | 5MT | 7AT | 6MT | 7AT | ||||||
| Body Parameter | L×W×H（mm） | 5263×1850×1790 | 5263×1850×1808 | |||||||

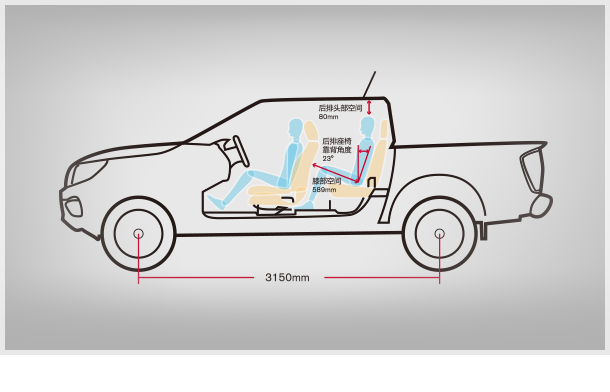

| Wheelbase（mm） | 3150 | |||||||||
| Track(front/rear)(mm) | 1570/1570 | |||||||||
| Cargo L×W×H(mm) | 1510×1562×475 | |||||||||
| Minimum Ground clearance(mm) | 205 | 218 | ||||||||
| Approach Angle/Departure Angle(°) | 30°/25° | 31°/26° | ||||||||
| Minimum Turning Radius(m) | 6.25 | |||||||||
| G.V.W(kg) | 2630 | |||||||||
| Curb Weight(kg) | 1669 | 1696 | 1781 | 1791 | ||||||
| Load Capacity(kg) | 636 | 609 | 524 | 514 | ||||||
| Fuel Tank(L) | 73 | |||||||||
| Maximum Speed（km/h） | 160 | 165 | 160 | 165 | ||||||
| Engine | Engine Type | QR25 | ||||||||
| Fuel Type | Gasoline | |||||||||
| Emission Standard | China V+OBD | |||||||||
| Displacement(L) | 2.5 | |||||||||
| Rated Power(Kw) | 135 | |||||||||
| Maximum Torque(N·m) | 236 | 251 | ||||||||
| Running System | Suspension(front/rear) | Double-wishbone,independent/Steel spring | ||||||||
| Brakes | Disc/Drum | |||||||||
| 255/70R16 | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Steel Wheel | ● | - | - | - | ● | - | - | - | ||
| Aluminum Wheel | ○ | ● | ● | ● | ○ | ● | ● | ● | ||
| Comfort | Height Adjustable Steering Wheel | ● | ● | ● | ● | ● | ● | ● | ● | |
| Single Zone Manual Air Conditioning （pollen filtration） | ● | - | - | - | ● | - | - | - | ||
| Double Zone Automatic Air Conditioning, （pollen filtration） | - | ● | ● | ● | - | ● | ● | ● | ||

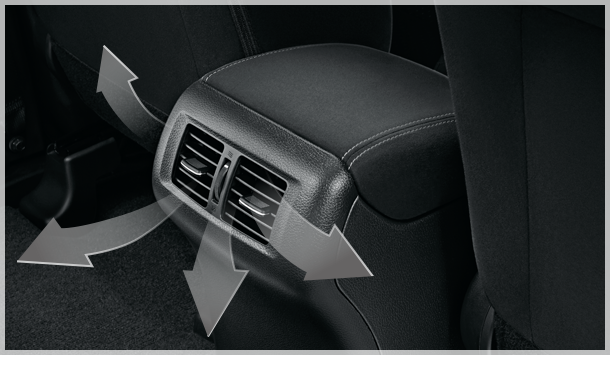

| Air Outlet In The Second Row | - | ● | ● | ● | - | ● | ● | ● | ||

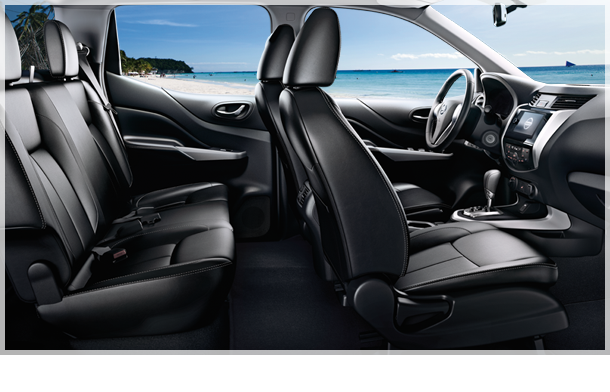

| 6 Direction Manual Adjustment On Driver Side(cloth seat) | ● | ● | - | ● | ● | ● | - | ● | ||

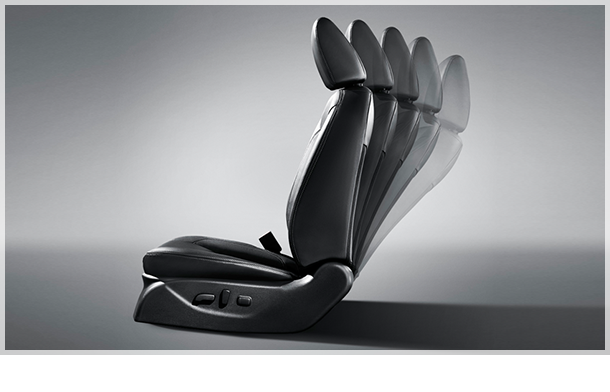

| 8 Direction Electic Adjustment On Driver Side(leather seat) | - | - | ● | - | - | - | ● | ○ | ||

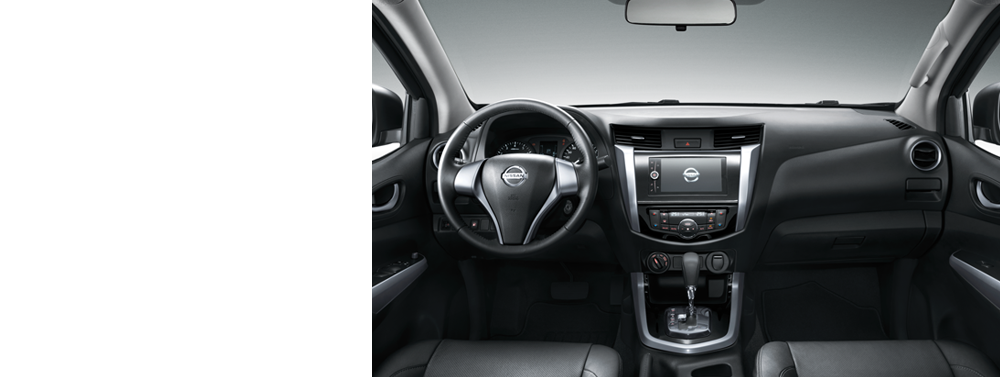

| Central Dashboard | Black | ● | - | - | - | ● | - | - | - | |
| Piano Paint | - | ● | ● | ● | - | ● | ● | ● | ||
| Interior Door Handle | Black | ● | - | - | - | ● | - | - | - | |
| Chroming | - | ● | ● | ● | - | ● | ● | ● | ||
| Central Lock | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Remote Key | - | ● | ● | ● | - | ● | ● | ● | ||
| 12V Power Supply（2） | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Glasses Case | - | ● | ● | ● | - | ● | ● | ● | ||
| Map Lamp（3 Usual Lamp）+Room Lamp | ● | - | - | - | ● | - | - | - | ||
| Map Lamp（2 Usual Lamp+Atmosphere Lamp）+Room Lamp | - | ● | ● | ● | - | ● | ● | ● | ||
| Cup Stand | 2 In Center Console | ● | - | - | - | ● | - | - | - | |
| 2 In Center Console+2 In Instrument Desk | - | ● | ● | ● | - | ● | ● | ● | ||
| Rear Window Defroster | - | ● | ● | ● | - | ● | ● | ● | ||
| Power Window In The Driver Side (anti-pinch) | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Power Windows(4 Doors) | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Exterior | An Electromagnetic Filler Cap | ● | ● | ● | ● | ● | ● | ● | ● | |
| Exterior Door Handle/Trunk Door Handle | Black | ● | - | - | - | ● | - | - | - | |
| Chroming | - | ● | ● | ● | - | ● | ● | ● | ||

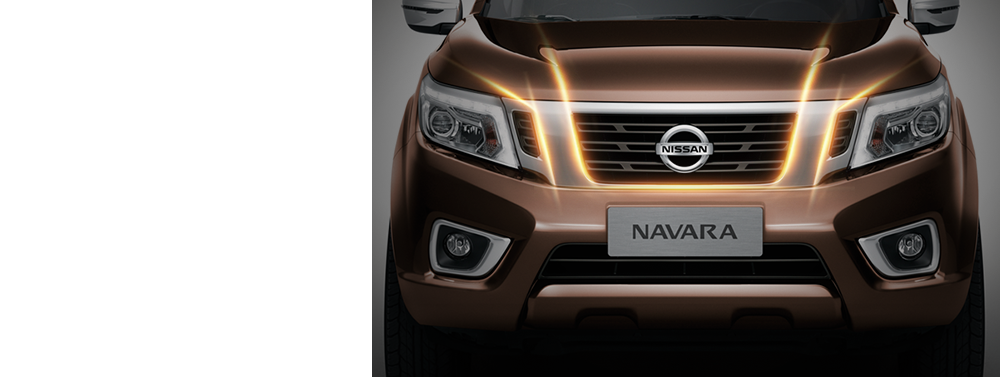

| Front Air Grille | Silvering | ● | - | - | - | ● | - | - | - | |
| Chroming | - | ● | ● | ● | - | ● | ● | ● | ||

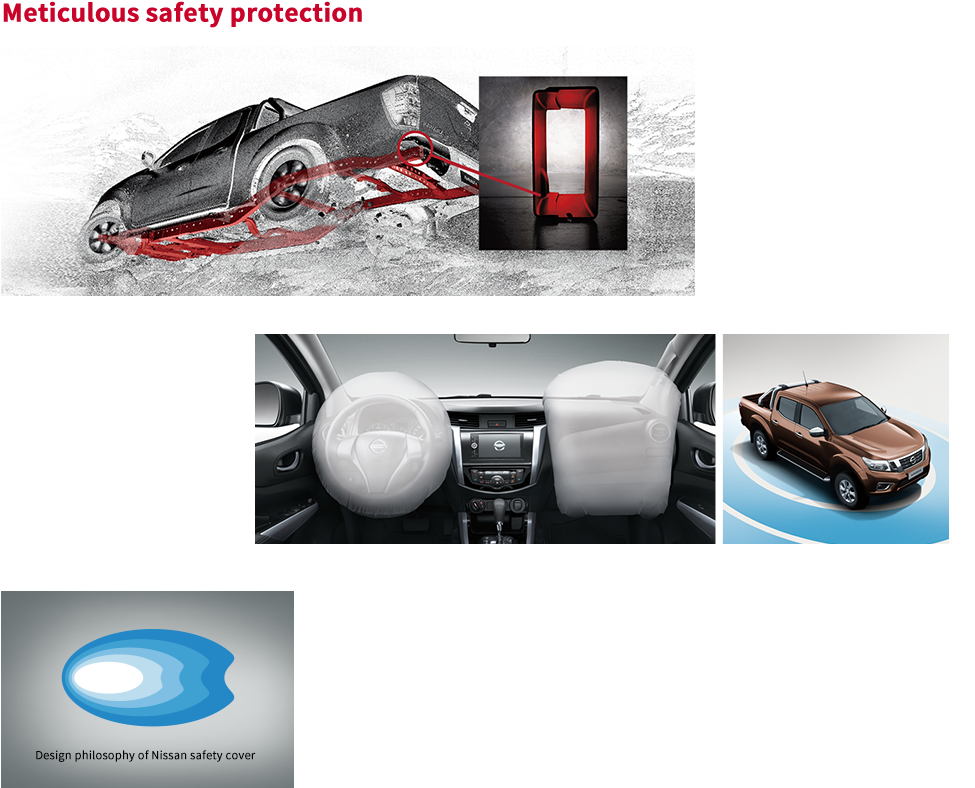

| Safety | Double Airbag | ● | ● | ● | ● | ● | ● | ● | ● | |
| Engine Anti-theft | - | ● | ● | ● | - | ● | ● | ● | ||
| ABS+EBD+BA | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Black Manual Rear Mirror+Electric Adjust | ● | - | - | - | ● | - | - | - | ||
| Chroming Manual Rear Mirror+Electric Adjust | - | ● | - | ● | - | ● | - | ● | ||
| Chroming Manual Rear Mirror+Electric Adjust+Turn Light | - | - | ● | - | - | - | ● | - | ||
| Anti-glare Interior Rearview Mirror | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Halogen Headlights (height adjustable) | ● | ● | - | ● | ● | ● | - | - | ||

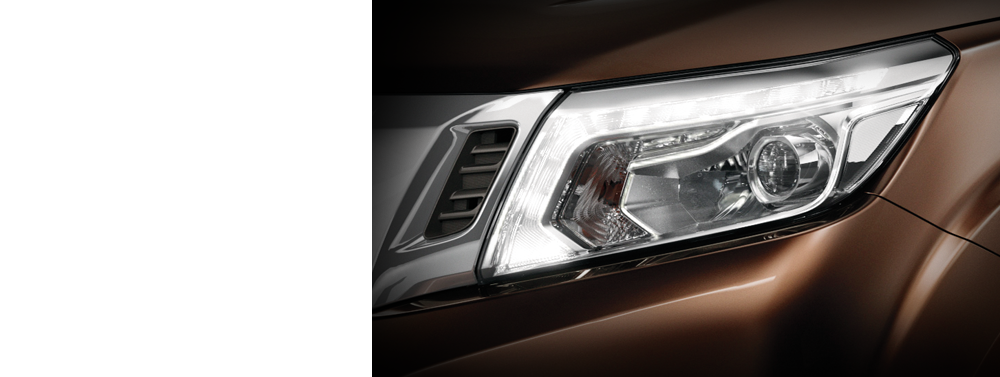

| LED Headlights (height adjustable) | - | - | ● | - | - | - | ● | ● | ||
| Front Fog Lamp | - | ● | ● | ● | - | ● | ● | ● | ||
| Rear Fog Lamp | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Daytime Runing light | - | - | ● | - | - | - | ● | ● | ||
| The Front Seat Belts（three point + preload + high adjustable） | ● | ● | ● | ● | ● | ● | ● | ● | ||
| The Second Row Seat Belts（two sides/3 point+middle/2 point） | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Child Safety lock | ● | ● | ● | ● | ● | ● | ● | ● | ||
| The Internal Rope Hook | ● | ● | ● | ● | ● | ● | ● | ● | ||
| A/V system | 2Loudspeaker System | ● | ● | - | ● | ● | ● | - | ● | |
| 6Loudspeaker System | - | - | ● | - | - | - | ● | - | ||

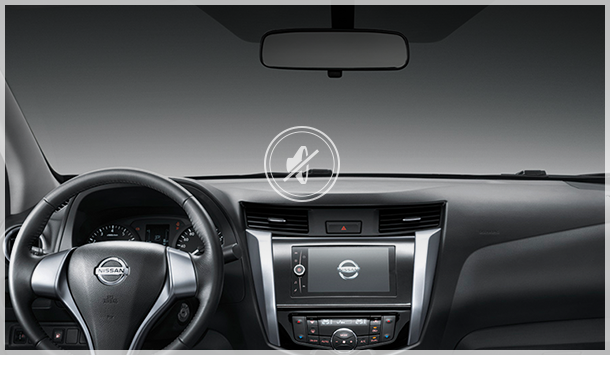

| Double DIN Acoustics（AM+FM+AUX +USB） | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Others | Bed liner（coating） | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| Side Pedals + Anti-Roll Stand | - | ○ | ○ | ○ | - | ○ | ○ | ○ | ||
| 7 Inch Display + Navigation + Reverse Image | - | ○ | ○ | ○ | - | ○ | ○ | ○ | ||
| Driver Side 8 Direction Electic Adjustment+Leather Suite(seat、gear lever、hand brake、steering wheel、door trim、the central store box） | - | - | ● | - | - | - | ● | ○ | ||
