Dimensions Unit : mm

PRODUCT FEATURES

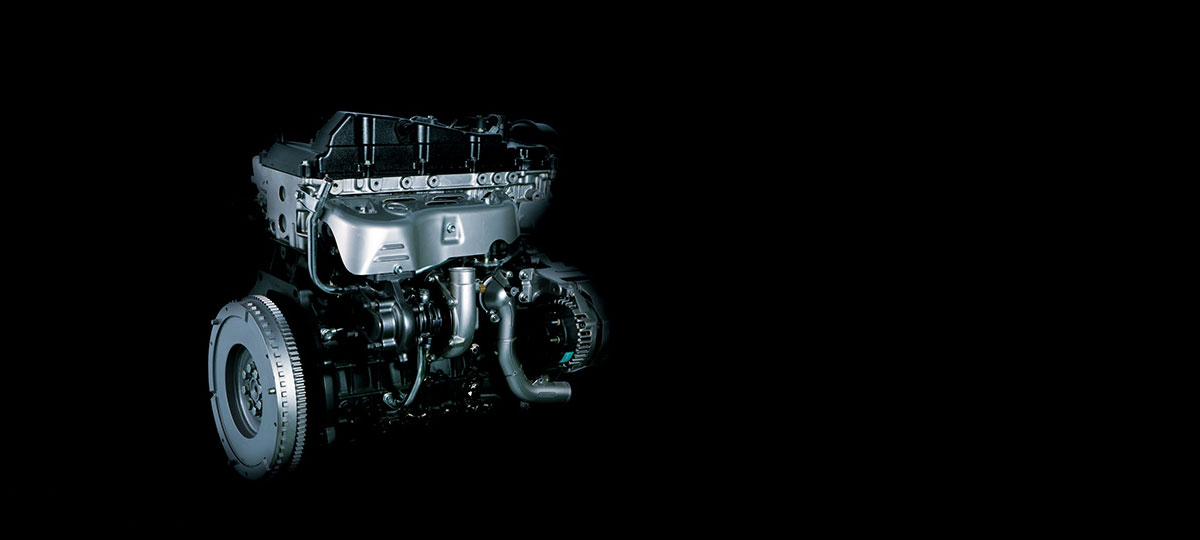

  • ZD30 Diesel Engine

    BOSCH Electronically controlled high pressure common rail technology with reliable performance.The max.power reaches 85kw and max.torque is 280N·m

  • ZD25 Diesel Engine

    BOSCH Electronically controlled high pressure common rail technology with reliable performance.The max.power reaches 85kw and max.torque is 280N·m

  • ZG24 Gasoline Engine

    BOSCH Electronically controlled high pressure common rail technology with reliable performance.The max.power reaches 85kw and max.torque is 280N·m

  • ZD30 Diesel Engine

    BOSCH Electronically controlled high pressure common rail technology with reliable performance.The max.power reaches 85kw and max.torque is 280N·m

  • ZD25 Diesel Engine

    BOSCH Electronically controlled high pressure common rail technology with reliable performance.The max.power reaches 85kw and max.torque is 280N·m

  • ZG24 Gasoline Engine

    BOSCH Electronically controlled high pressure common rail technology with reliable performance.The max.power reaches 85kw and max.torque is 280N·m

  • Super power
    Strong ability
  • Fuel-efficient
    technique
  • Larger space
    Bravo specs
  • Reliable safety
    assurance
PRODUCT HISTORY
  • 1993
  • 1999
  • 2005
  • 2011
  • 2013
  • 2014
  • 1993

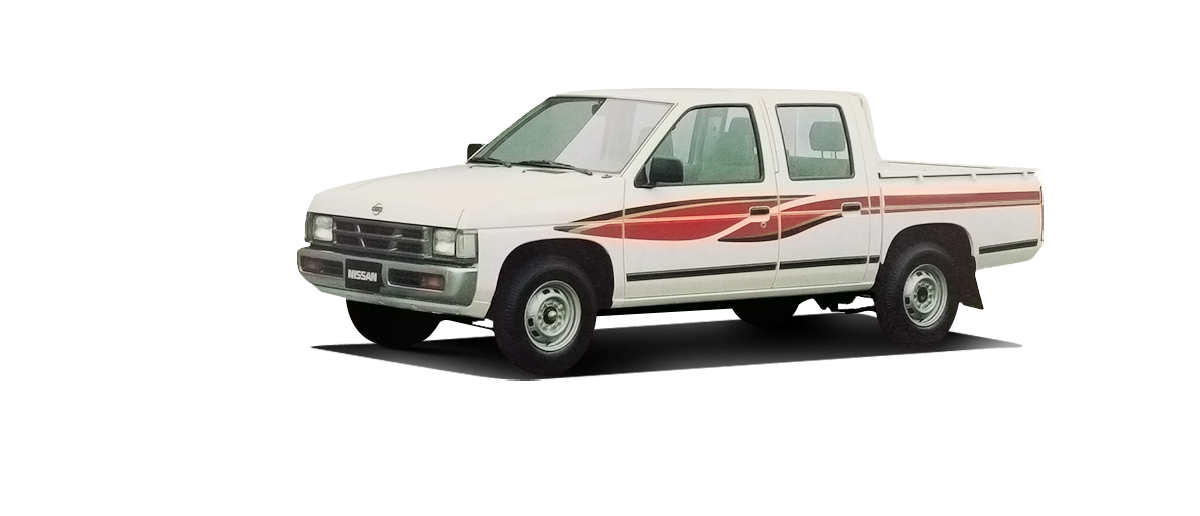

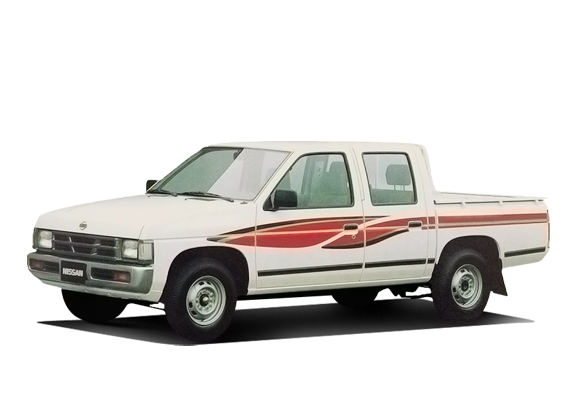

    ZNA imported D21 pick-up

  • 1999

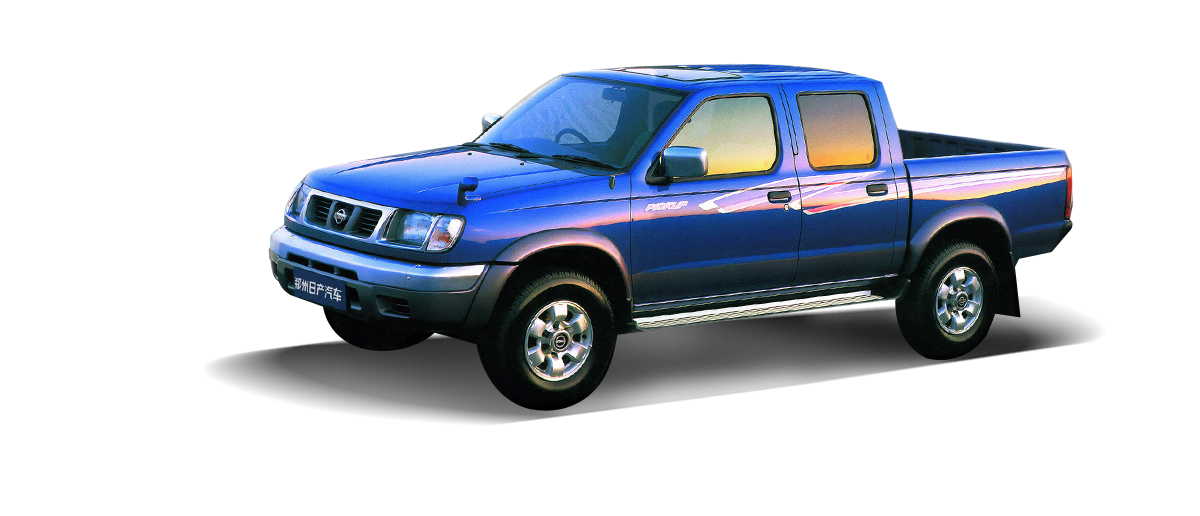

    ZNA imported D22 pick-up

  • 2005

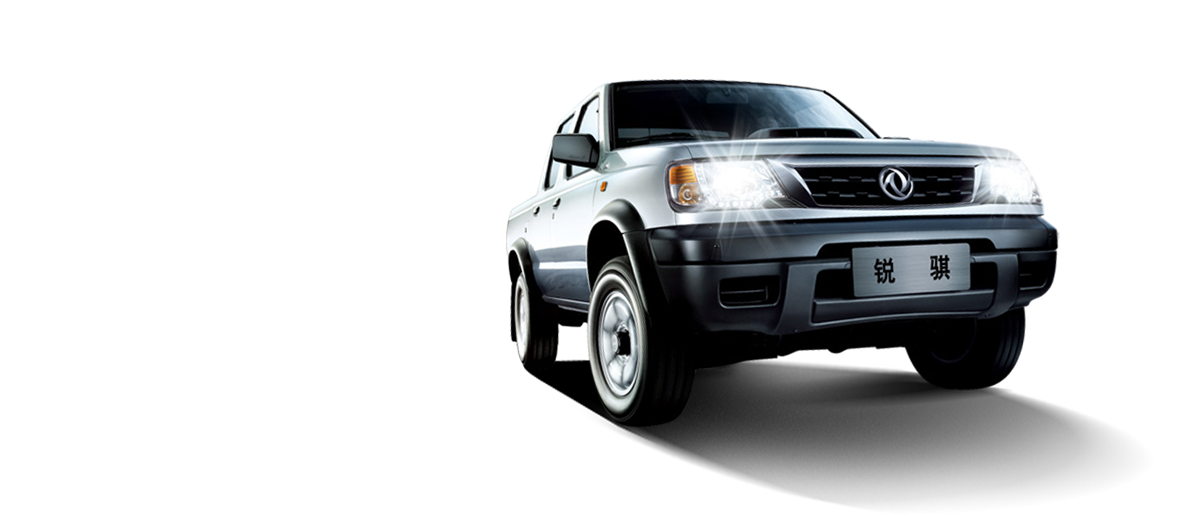

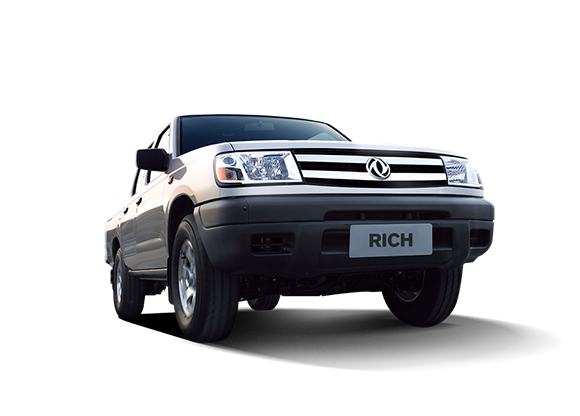

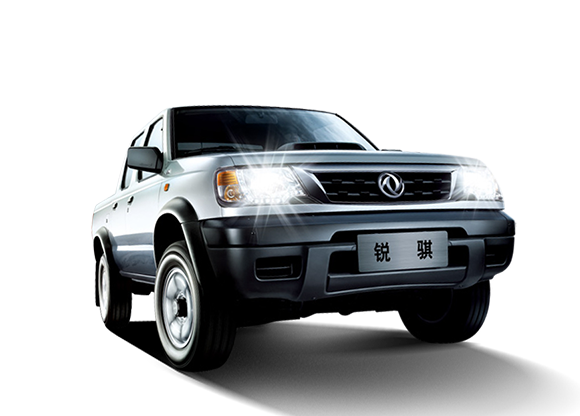

    DongFeng RICH pick-up entered into market

  • 2011

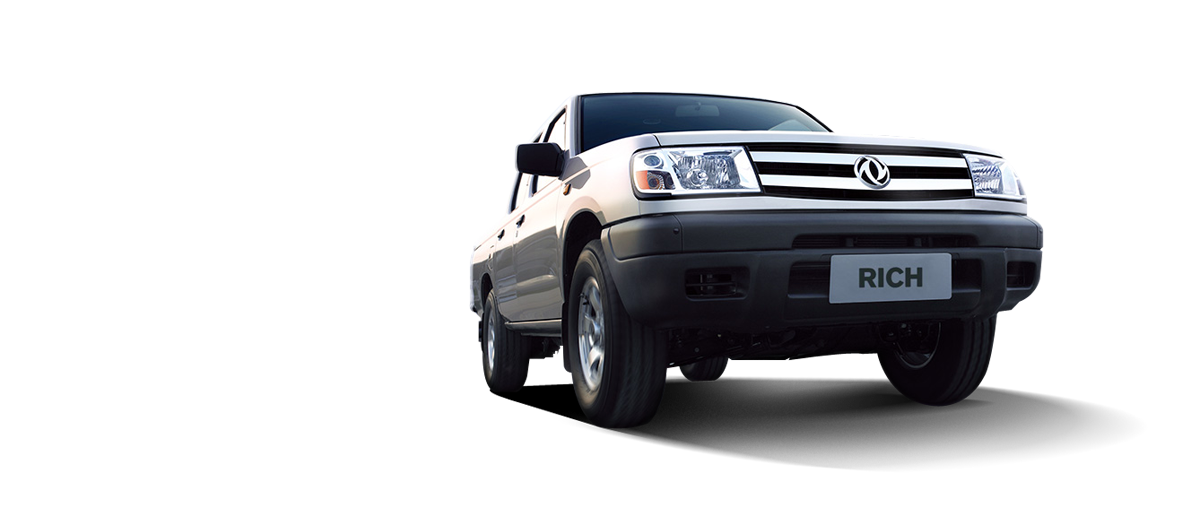

    RICH with ZD30 engine entered into market

  • 2013

    RICH 2013 version entered into market

  • 2014

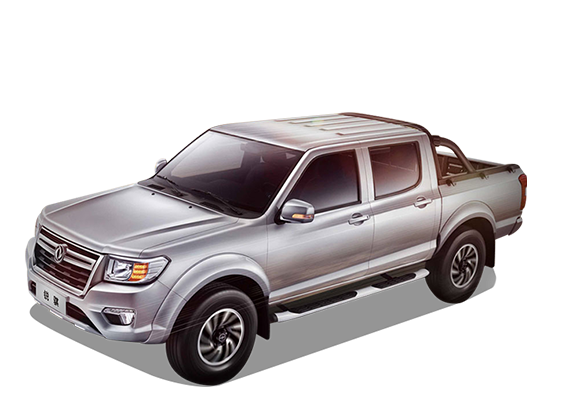

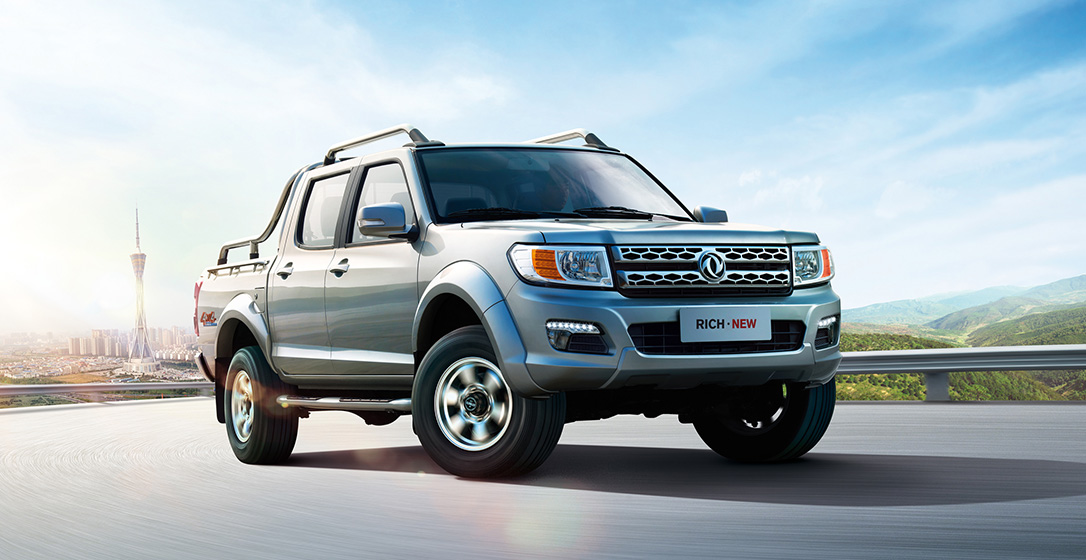

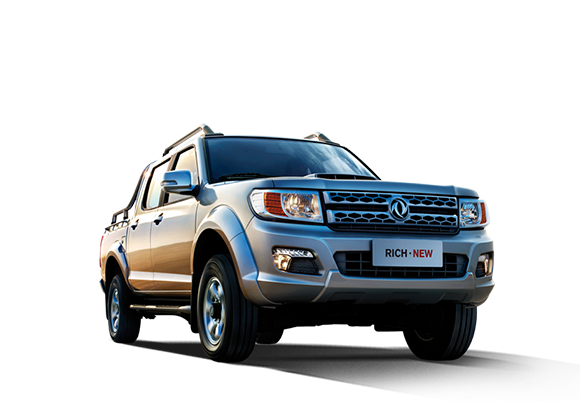

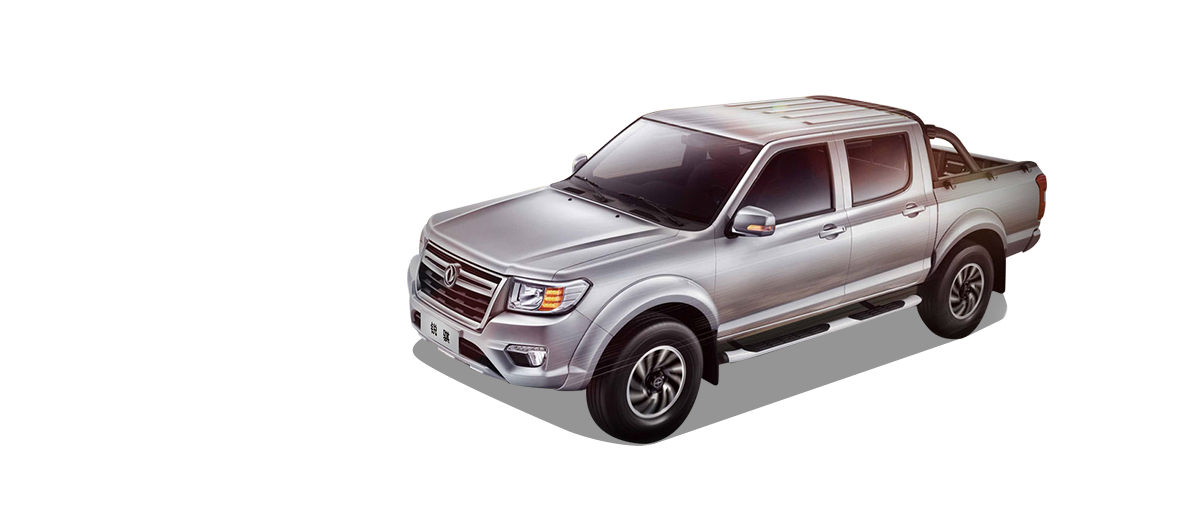

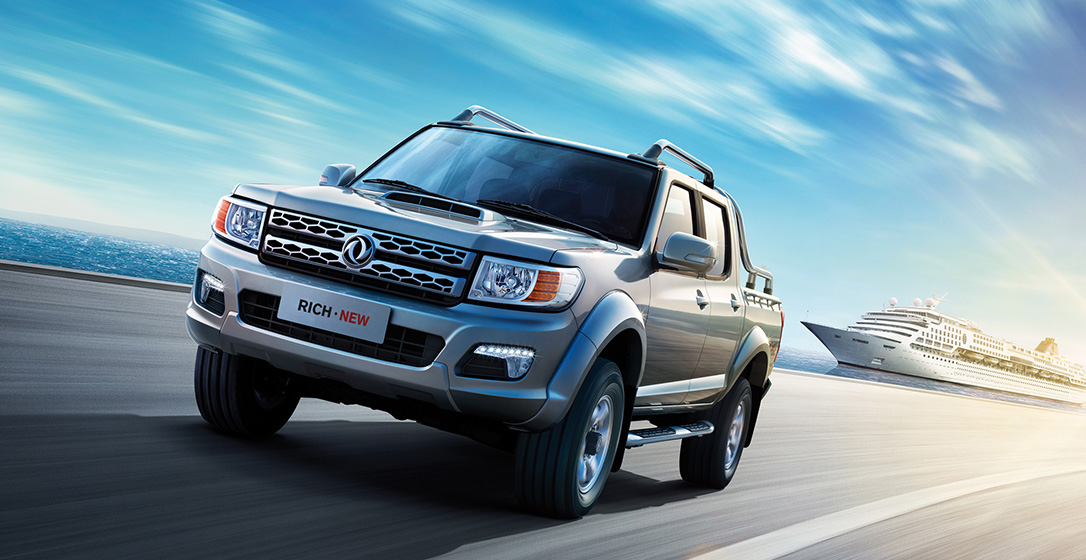

    RICH NEW entered into market

  • 1993
  • 1999
  • 2005
  • 2011
  • 2013
  • 2014
  • 1993

    ZNA imported D21 pick-up

  • 1999

    ZNA imported D22 pick-up

  • 2005

    DongFeng RICH pick-up entered into marke

  • 2011

    RICH with ZD30 engint tntered into market

  • 2013

    RICH 2013 cersion entered into market

  • 2014

    RICH NEW entered into market

360° SHOW
Drag the button

Effect for reference only, the actual sales models prevail

Specification
Model Gasoline Standard 2WD Gasoline Luxury 2WD Gasoline Standard 4WD Gasoline Luxury 4WD Diesel Luxury 2WD Diesel Luxury 4WD
Security
Parameters
Passenger number: 5 5 5 5 5 5
Max.gradeability(%): 30 30 40 40 30 40
Approach angle/Departure angle(。): 28/23 28/23 30/24 30/24 28/23 30/24
Load capacity(kg): 490 490 490 490 490 490
Curb Weight(kg): 1495 1495 1695 1695 1620 1790
G.V.W.,(kg): 2310 2310 2510 2510 2435 2605
Min.turning diameter(m): 13 13 13 13 13 13
Track(fount/rear)(mm): 1415/1410 1415/1410 1545/1525 1545/1525 1415/1410 1545/1525
WheelBase(mm): 3050 3050 3050 3050 3050 3050
Cargo L*W*H(mm): 1395*1390*430 1395*1390*430 1395*1390*430 1395*1390*430 1395*1390*430 1395*1390*430
L*W*H(mm): 5080*1720*1680 5080*1720*1680 5080*1820*1715 5080*1820*1715 5080*1720*1680 5080*1820*1715
Ground clearance(mm): 210 210 215 215 210 215
Comfort
Appearance
Seat
Control Device

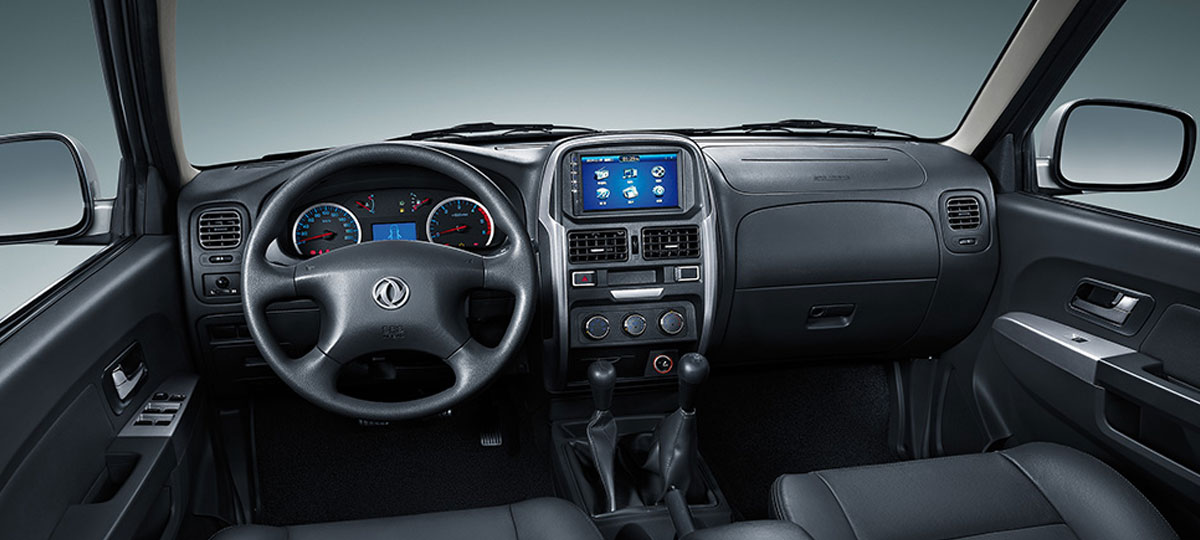

Interior
Visual field and body
Interior trims
Convenient Technology
Audio and video equipment
Body
Power
Driving
Appearance
Seats
Mechanical Device
Comfortable configuration
Engine
Type: ZG24 ZG24 ZG24 ZG24 ZD25TCI ZD25TCI
Fuel tank(L): 60 60 60 60 60 60
Fuel consumption(L/100km) : 7.9 7.9 8.2 8.2 6.6 7.4
Max. speed(km/h) : 160 160 160 160 150 150
Max. torque(N·m/rpm) : 217/2600~3200 217/2600~3200 217/2600~3200 217/2600~3200 280/1800~2600 280/1800~2600
Max. power(kw/rpm) : 102/4600~5000 102/4600~5000 102/4600~5000 102/4600~5000 85/3800 85/3800
Displacement(cc) : 2.438 2.438 2.438 2.438 2.498 2.498
Emission : Euro IV/Euro V Euro IV/Euro V Euro IV/Euro V Euro IV/Euro V Euro IV Euro IV
Drive
Suspension(front/rear) : Double-wishbone,independent/Steel spring Double-wishbone,independent/Steel spring Double-wishbone,independent/Steel spring Double-wishbone,independent/Steel spring Double-wishbone,independent/Steel spring Double-wishbone,independent/Steel spring
Brakes(front/rear) : Disc/Drum Disc/Drum Disc/Drum Disc/Drum Disc/Drum Disc/Drum
Design
Comfort

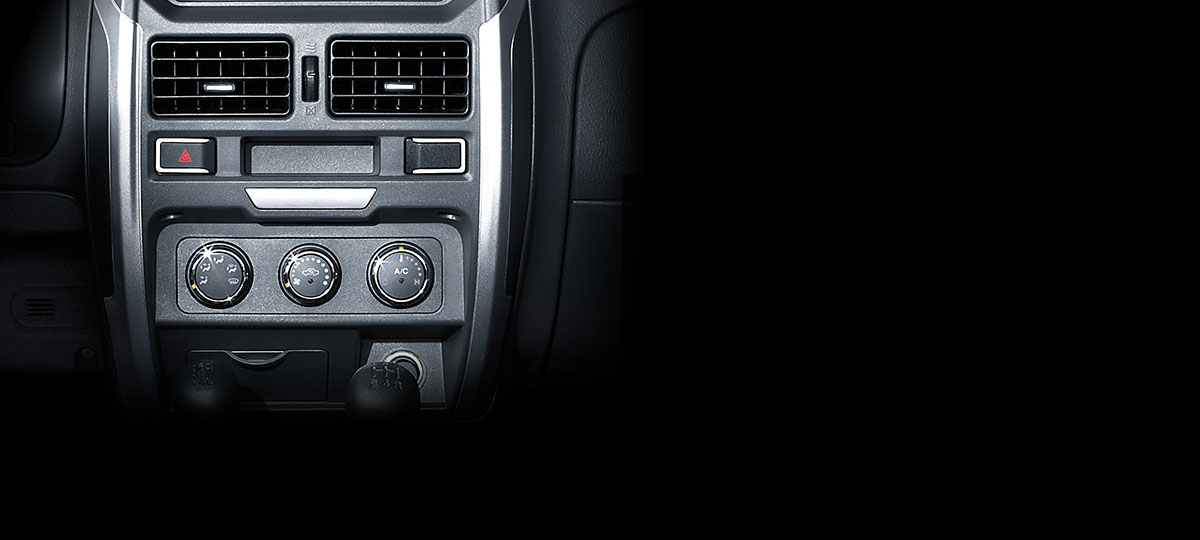

Auto air-conditioner:
Central lock:
Remote key:
Intermittent wiper:
FM,AM+USB:
CD:

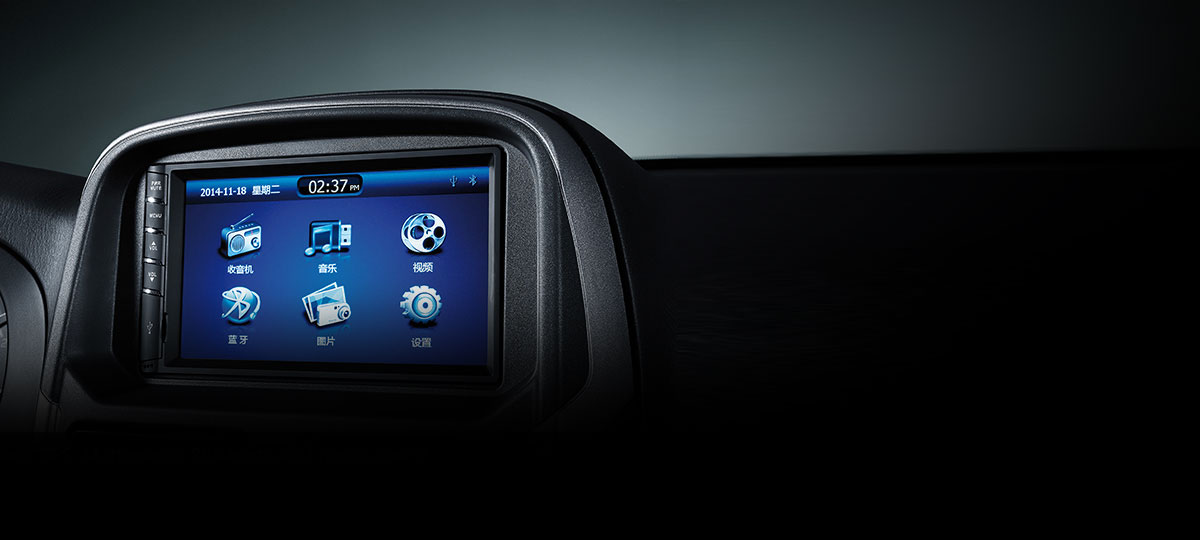

Multimedia,7" touch screen+Bluetooth:

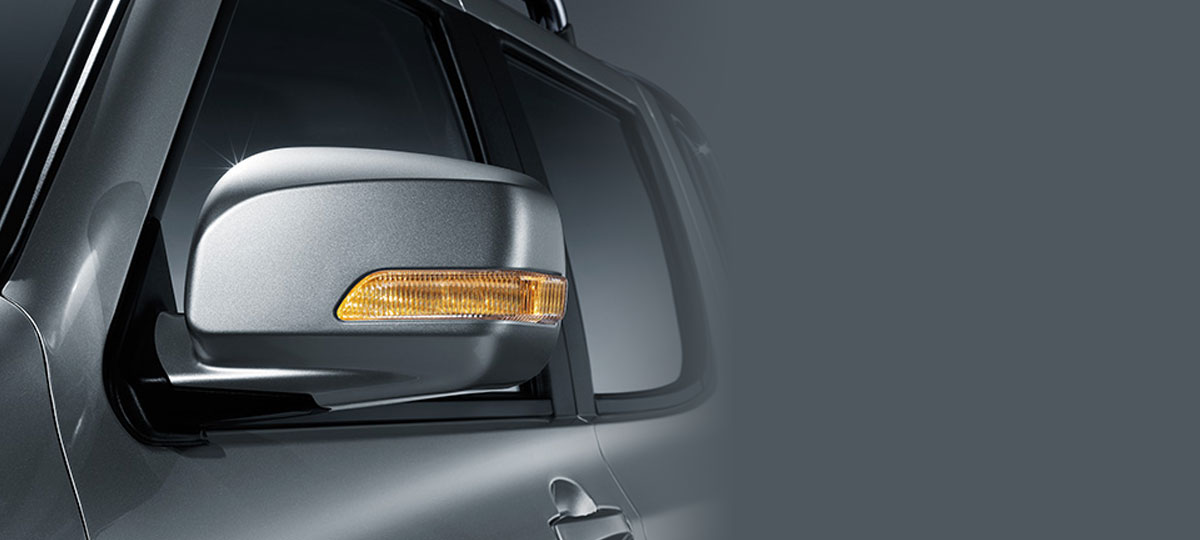

Power exterior mirrors with turning lamps:
Built-in antenna:

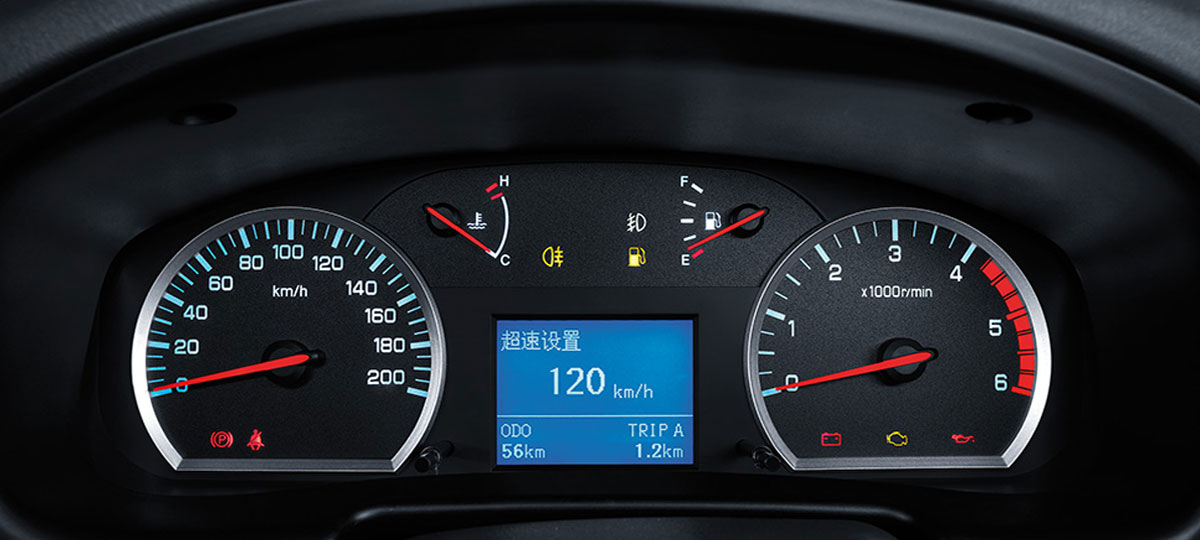

Trip info.Display:

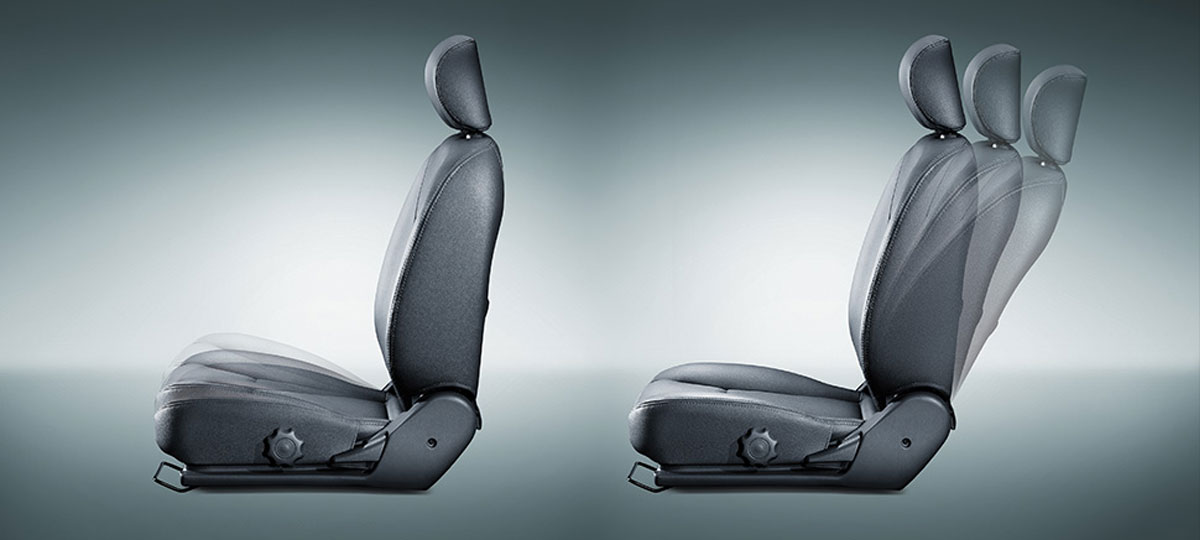

Height-adjustable driver seat:
Cloth seats:
Leather seats:
Auto-dimming interior mirror:
Convenience
Power windows :
Safety
Adjustable steering wheel,collapsible steering column:
Reversing sensor:
Seatbelt on second row:
Seatbelt warning:

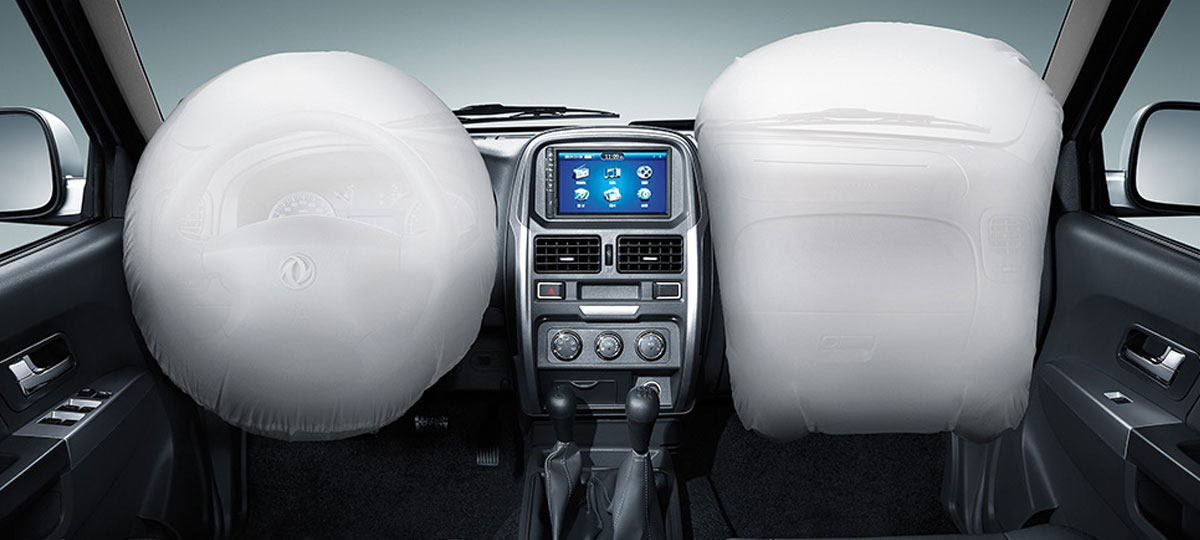

Airbags, driver & front passenger side:
Halogen headlights:
Electric adjustable headlights:
LED daytime running lights:

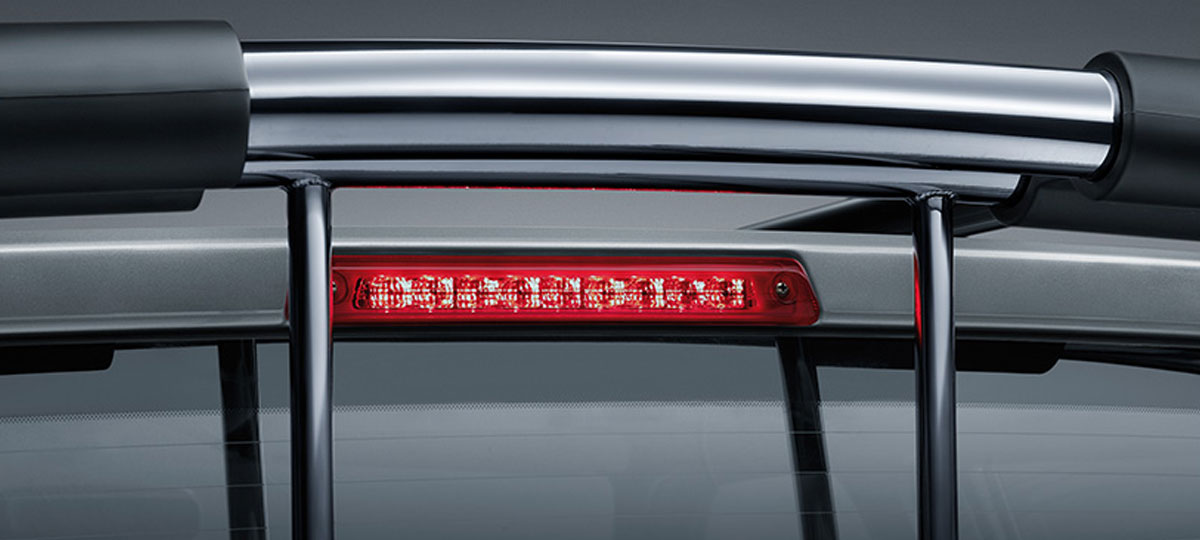

High-mount braking lamp:
Front fog lamp:
Rear fog lamp:
Appearance and interior trims
Black interior:
Options
Outside rope hook:
Inside rope hook:
Anti-rust coat:
Baggage rack:
Pipe-type protective rack:
Side step pedal:
Tyre
Color
System structure
Easy operation
Other
2+3+2 seats
Safety

“●” Set ,“—” Not set

Images, engine specifications and information posted above may differ from region to region. All information and illustrations are based on data available at the time of publication and subject to change without notice. Please visit our regional homepage or dealer for more information.
