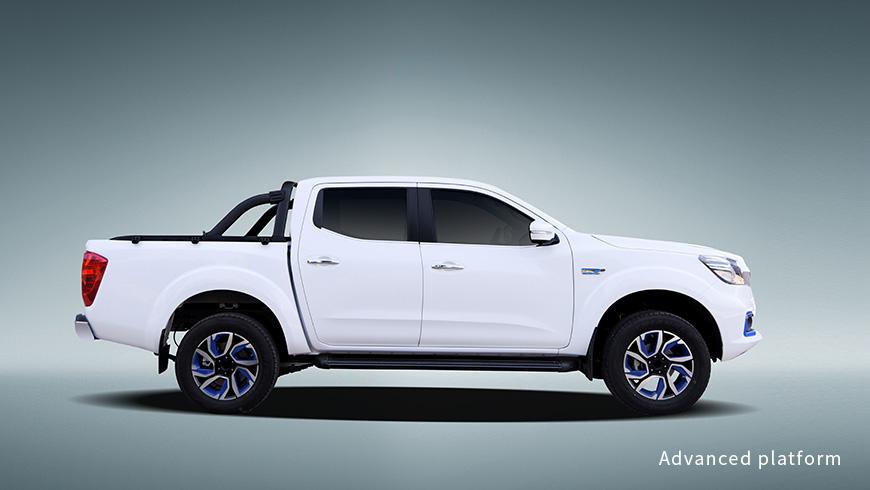

| Electric RICH6 Pickup | LUX | ||
|---|---|---|---|
| A17C | |||
| Electric RICH6 Pickup | LUX | ||
| A17C | |||
| Parameters | L×W×H（mm） | 5290×1850×1820 | |
| Wheelbase（mm） | 3150 | ||
| Tread (Front/Rear)(mm) | 1570/1570 | ||
| Cargo box L×W×H(mm) | 1510*1562*475 | ||
| Min. ground clearance(mm) | 180 | ||
| G.V.W. (kg) | 3200 | ||
| Curb weight (kg) | 1970 | ||
| Max. gradeability(%) | 30 | ||
| Passenger numbers | 5 | ||
| Charge time-Quick (h) | 2 | ||
| Range-NEDC（km） | 350 | ||
| Max power（kW） | 120 | ||
| Max Torque（Nm） | 420 | ||
| Volt（V） | 347.76 | ||
| Power（kWh） | 60.16 | ||
| Power | Motor | 50/120kw | S |
| Battery | Ternary lithium | - | |
| lithium-ion phosphate | S | ||
| Battery heater | S | ||
| Transmission | Type | Reducer，integrated into rear Axle | S |
| Shift | Knob | S | |
| Drive&Suspension | Drive Type | 2WD | S |
| Front | Double-wishbone +stabilizer bar | S | |
| Rear | Steel spring | S | |
| Brake | Front | Disc | S |
| Rear | Disc | S | |
| Parking brake | EPB | S | |
| Steering | Steering Wheel | Manual Adjustable | S |
| Cruise Control | S | ||
| Audio | S | ||
| Bluetooth | S | ||
| Steering | Power steering | S | |
| Tire&Wheel | Tire Type | 255/60R18 （enhanced） | S |
| Rim | Alloy hub,Machining bright surface | S | |
| Axle head cover | With LOGO | S | |
| Tire repair liquid+Air pump | S | ||
| Door | Central door locking | S | |
| Child safety lock | Rear door | S | |
| Intelligent key | Keyless entry (Driver side+Assistant driver side+hatchback door)start button+immobilizer | - | |
| Keyless entry (Driver side+Assistant driver side)start button+immobilizer | S | ||
| Glass | Door glass | Driver Seat : One-Key Up/Down Window Assistant driverseat：Electric | S |
| Rear：Electric | S | ||
| Bumper&Front grille | Front bumper | Body color | S |
| Rear bumper | Body color | - | |
| chrome | S | ||
| Front grille | With Charger(DC+AC) | S | |
| Rear Mirror | Inside | Body color+Manual folding & electric operated +Turning light(LED) | S |
| Outside | Manual anti—dazzling | S | |
| Body | Side pedal | S | |
| Roof rack | - | ||
| Hood support | Air operated | S | |
| High braking lamp | - | ||
| Roll Cage | S | ||
| Lamp | Front | Halogen | S |
| Electric adjustable | S | ||
| Front fog lamp | S | ||
| Rear fog lamp | S | ||
| Rear combination lamp | S | ||
| LED Daytime light | S | ||
| Number-plate light | S | ||
| Map light+ reading light | S | ||
| Meter | 3.5 inch Display | READY、Volt、current、Temperature、PRND,SOC、Range) | S |
| 10 inch LCD | S | ||
| speedometer | S | ||
| Power meter | S | ||
| Indicator&Warning | Charging、Battery、Speed、EPS、EPB、Lamps、Seatbelt、Doors、Airbags、etc.. | S | |
| Audio-video | 7 inch mulit function display | Bluetooth+Phone | - |
| 9 inch mulit function display | S | ||
| Loudspeaker | 4 | S | |
| A/C | AUTO | with pollen filter | S |
| Interior | Sun visor | Driver side | S |
| Assistant driver side | S | ||
| USB | 2 | S | |
| Glass box | S | ||
| Glove box | S | ||
| Cup holder | 2 | S | |
| Seats&Belt | Seat Material | Leather（Black） | S |
| Driver side | Slide, reclining, lifter ，Manual seat | S | |
| Assistant driver side | Slide, reclining, lifter ，Manual seat | S | |
| Front Head restraints | 2，one way adjustable system | S | |
| Rear Head restraints | 2，one way adjustable system | S | |
| Seat Belt | All 3 point | S | |
| ISOFIX | - | ||
| Seat belt remainder | Driver side | S | |
| Assistant driver side | S | ||
| Safty | Air bag | Driver +Assistant driver side | S |
| ABS+EBD | S | ||
| ESP | ABS+EBD+TCS+VDC+HBA+HHC+RMI | - | |
| Tire pressure monitoring | S | ||
| Rear Radar | S | ||
| Rearview camera | S | ||
| Low-speed pedestrian warning | S | ||
| Others | DC/DC | ≥1.5KW | S |
| EV Charger | O | ||
| OBC | 6.6kw | S | |
①Note:“●”Standard；“－”unavailable；“○”optional
ZNA reserves the right to change or stop using the specifications. In case the specifications listed are inconsistent with the actual vehicle, the real one shall prevail.
