Fuel type P15 Gasoline P15 Diesel
Model ZN1035U5N5 ZN1035UCN5 ZN1035U5X5 ZN1035U5X5A ZN1035UCX5 ZN1035UCX5A
Model specifications STD LUX STD LUX STD LUX LUX STD Flagship LUX
Driving type 2WD 4WD 2WD 4WD
Transmission 5MT 5MT 6AT 5MT 6AT
Emission standard Euro V+OBD Euro V+OBD Euro V+OBD Euro V+OBD
Fuel type
Model
Model specifications
Driving type
Transmission
Emission standard
Fuel type
Model
Model specifications
Driving type
Transmission
Emission standard
Parameters L×W×H(mm)
Wheelbase(mm)
Tread (Front/Rear)(mm)
Cargo box L×W×H(mm)
Min. ground clearance(mm)
Min. turning radius(m)
G.V.W. (kg)
Curb weight (kg)
Load capacity (kg)
Approach angle/Departure angle(°)
Max. gradeability(%)
Passenger numbers
Fuel tank(L)
Max. speed (km/h)
Engine Model
Displacement (mL)
Max. power (Kw)
Max. torque (Nm)
Driving mechanism Braking
Suspension
Tyre
Comfort Adjustable steering whee (leather)
Manual AC (electronically controlled)

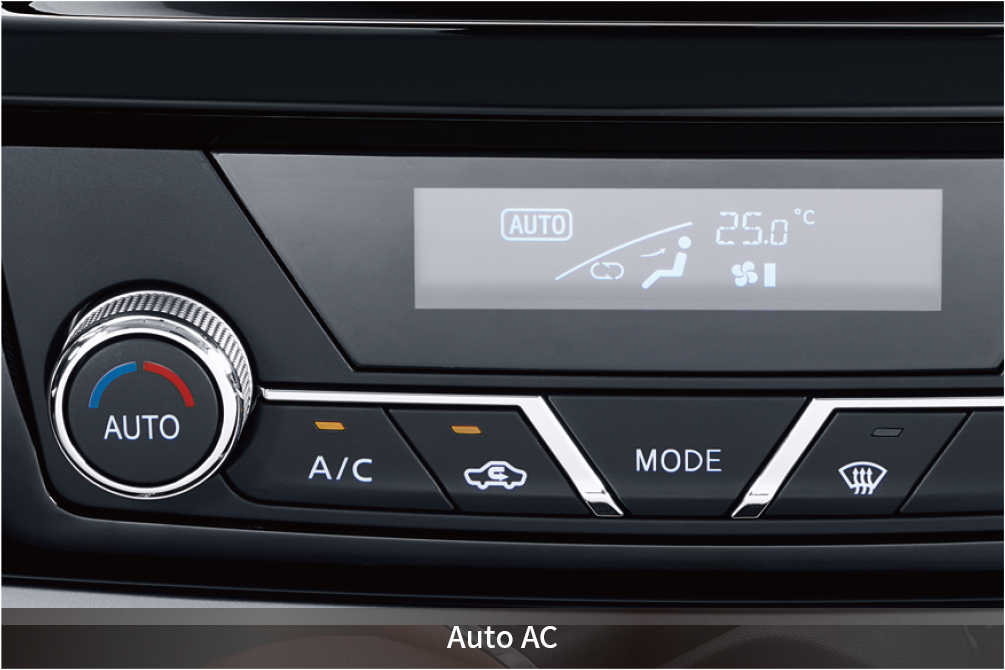

Automatic AC (Pollen filter)
Driver's seat, 4 way manual adjustment Leather (black)
Leather (black+brown)

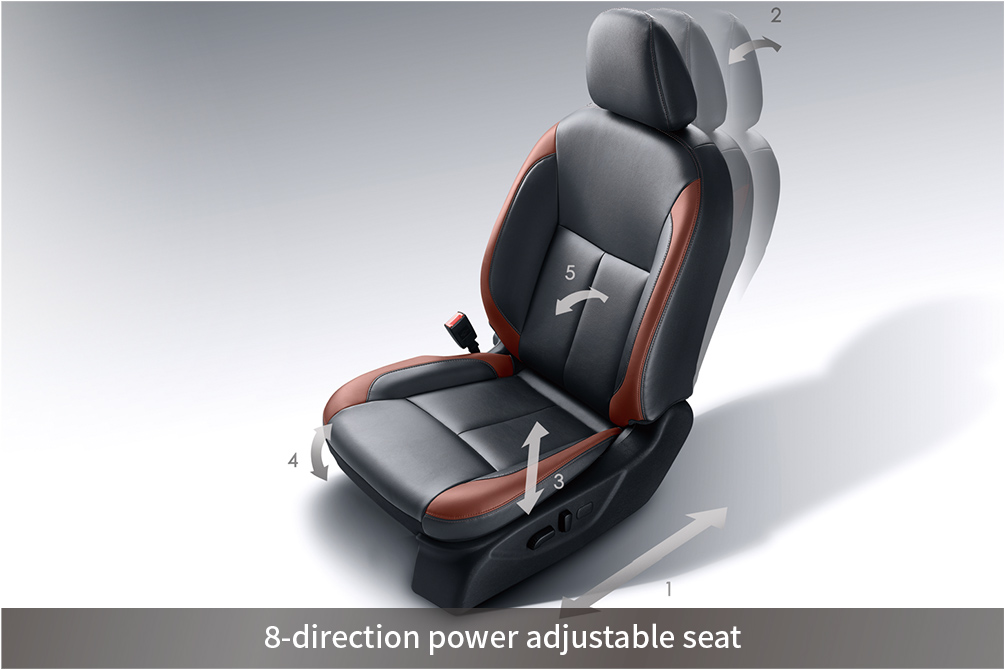

Driver's seat, 8 way electronic adjustment Leather (black+brown)
Multifunctional display (3.5") Single color
Colored
Remote key

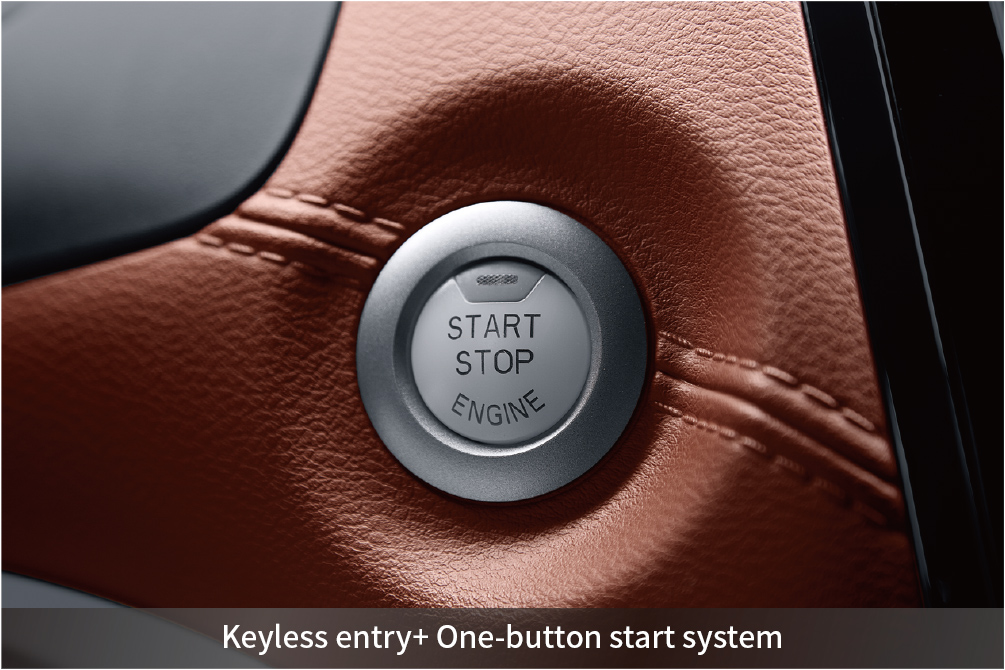

Intelligent key(keyless entry+ start button+immobilizer)
Glasses box
Map light+ reading light)
Front windshield (green glass+ultraviolet-proof+ heatproof
Pheumatic hood support
Power window, anti-pitch, driver's side
Four power windows
Appearance Electronic filler cap
Exterior door handle/cargo box door handle Chrome plated
Alloy hub Machining bright surface
Silver paint
Front bumper Body color
Rear bumper Chrome plated
Black plastic paint
Safety Double airbags
ABS+EBD
ABS+EBD+ESP
Tire pressure monitoring system
Body color rearview mirror+electronically adjusted+turning lamps(LED)
Interior anti-dizzle rearview mirror
Electronically adjusted front headlamp
Front fog lamp
Front fog lamp(chromplated décor cover)
Rear fog lamp
LED daytime running light
Rearview camera
Parking sensor
Front safety belts (three points +hight adjustable)
Second-row safety belt (three points)
Engine underguard(resin)
Child safety lock
Audio-video system RadioAM+FM+AUX+USB
Multimedia system 7": bluetooth+carlife
9": luetooth+carlife+voice control+WIFI module+OBD display
Loudspeakers 2
4
6
Others Anti-rust coat (painted)
Rear cargo protective rack
(exterior rope hook)
Side pedal
Welcome side pedal (front door: plastic+metal+ZNA letter)
Roof rack
Fuel type P15 Gasoline P15 Diesel
Model ZN1035U5N5 ZN1035UCN5 ZN1035U5X5 ZN1035U5X5A ZN1035UCX5 ZN1035UCX5A
Model specifications STD LUX STD LUX STD LUX LUX STD Flagship LUX
Driving type 2WD 4WD 2WD 4WD
Transmission 5MT 5MT 6AT 5MT 6AT
Emission standard Euro V+OBD Euro V+OBD Euro V+OBD Euro V+OBD
Parameters L×W×H(mm) 5290*1850*1810 5290*1850*1810(1850 with roof rack) 5290*1850*1810 5290*1850*1810(1850 with roof rack)
Wheelbase(mm) 3150 3150
Tread (Front/Rear)(mm) 1570/1570 1570/1570
Cargo box L×W×H(mm) 1510*1562*475 1510*1562*475
Min. ground clearance(mm) 207 207
Min. turning radius(m) 6.4 6.4
G.V.W. (kg) 2525 2600 2625 2655 2715 2755
Curb weight (kg) 1710 1785 1810 1840 1900 1940
Load capacity (kg) 490 490 490 490 490 490
Approach angle/Departure angle(°) 31/20 31/20
Max. gradeability(%) 30 40
Passenger numbers 5 5
Fuel tank(L) 73 73
Max. speed (km/h) 150 150
Engine Model 2TZD ZD25T5
Displacement (mL) 2438 2498
Max. power (Kw) 116 103 103
Max. torque (Nm) 230 305 305
Driving mechanism Braking Front disk, rear drum Front disk, rear drum Front disk, rear drum
Suspension Front: Double-wishbone independent Front: Double-wishbone independent Front: Double-wishbone independent
Rear: Steel spring Rear: Steel spring Rear: Steel spring
Tyre 255/70R16 255/70R16 255/70R16
Comfort Adjustable steering whee (leather)
Manual AC (electronically controlled) - - - - - - - -
Automatic AC (Pollen filter) - -
Driver's seat, 4 way manual adjustment Leather (black) - - - - - -
Leather (black+brown) - - - - - -
Driver's seat, 8 way electronic adjustment Leather (black+brown) - - - - - - - -

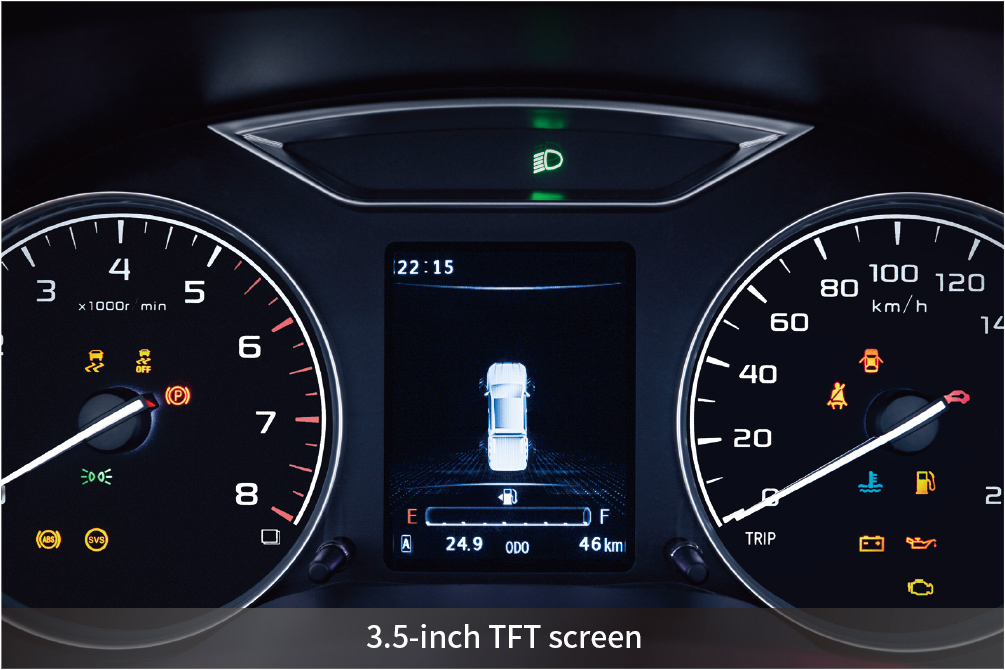

Multifunctional display (3.5") Single color - -
Colored - - - - - - - -
Remote key - -

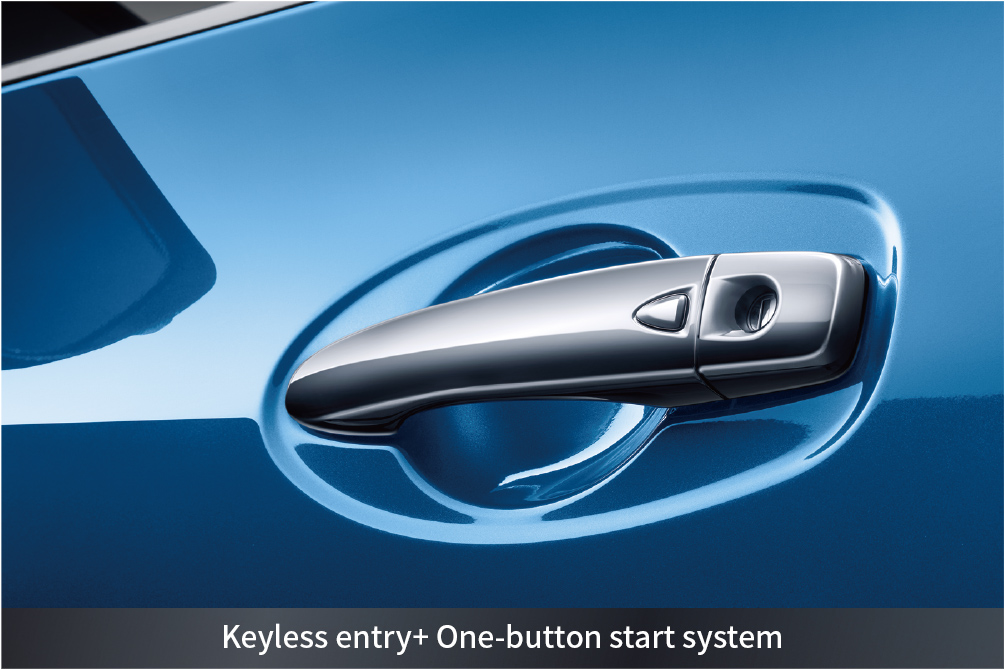

Intelligent key(keyless entry+ start button+immobilizer) - - - - - - - -

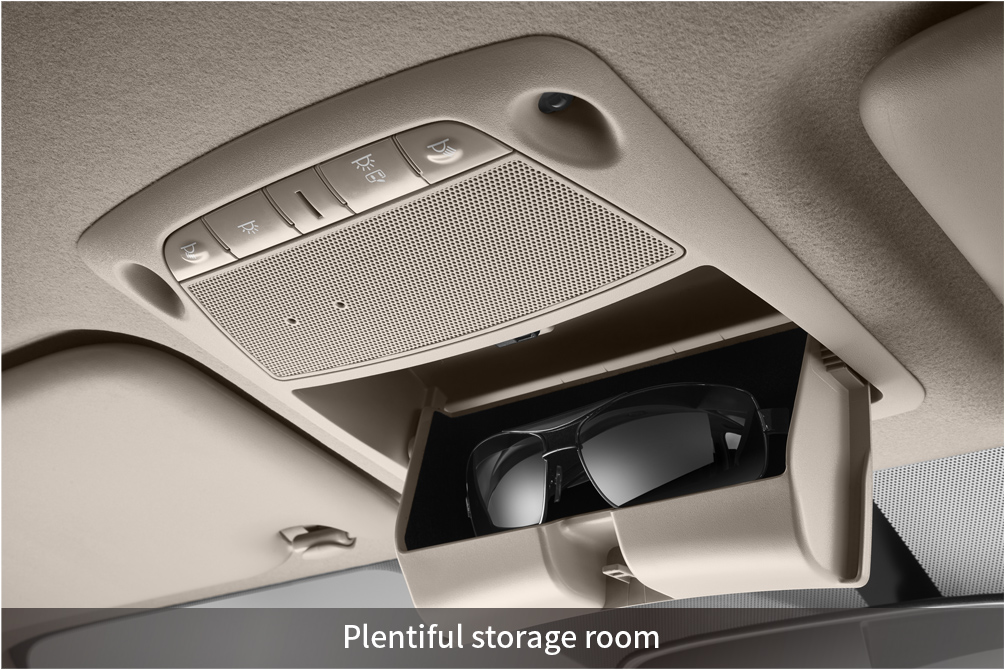

Glasses box - -
Map light+ reading light)
Front windshield (green glass+ultraviolet-proof+ heatproof
Pheumatic hood support
Power window, anti-pitch, driver's side
Four power windows
Appearance Electronic filler cap
Exterior door handle/cargo box door handle Chrome plated

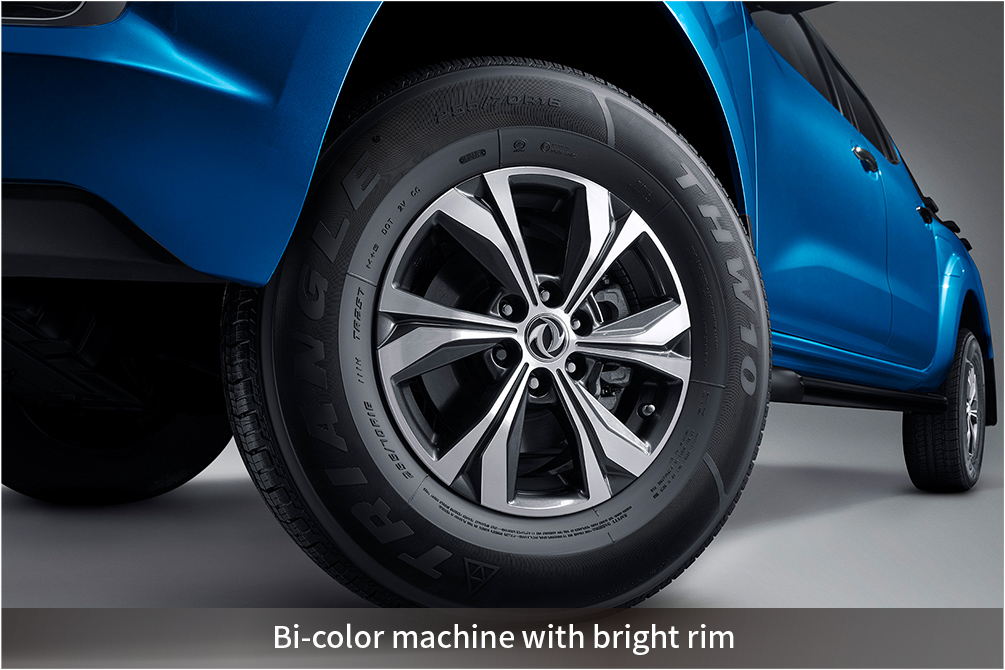

Alloy hub Machining bright surface - - - - - - - -
Silver paint - -
Front bumper Body color
Rear bumper Chrome plated - - - - - - - -
Black plastic paint - -

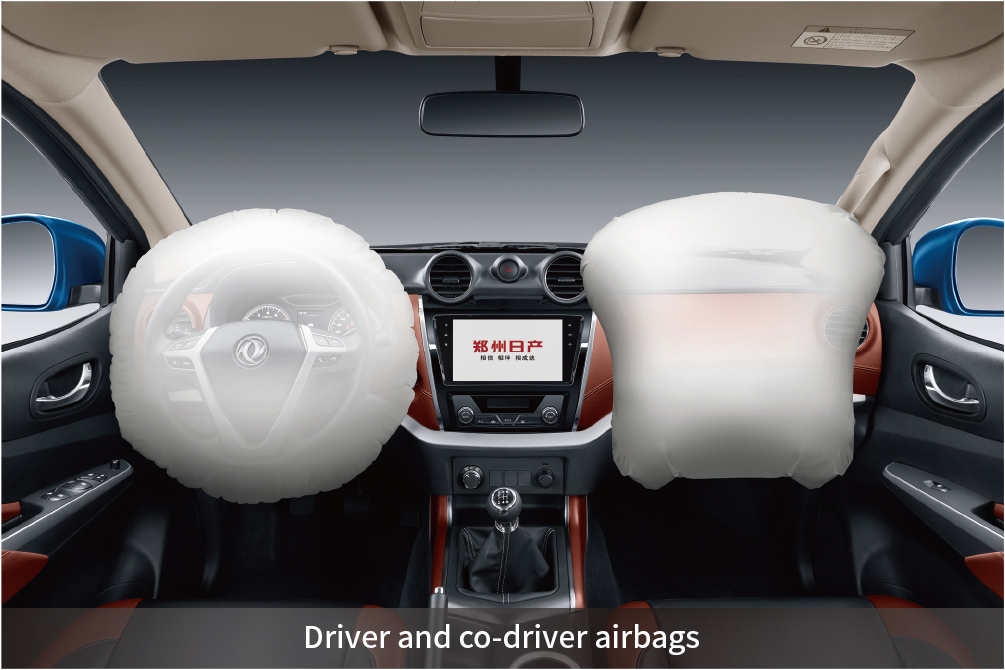

Safety Double airbags
ABS+EBD - - - - - - - -

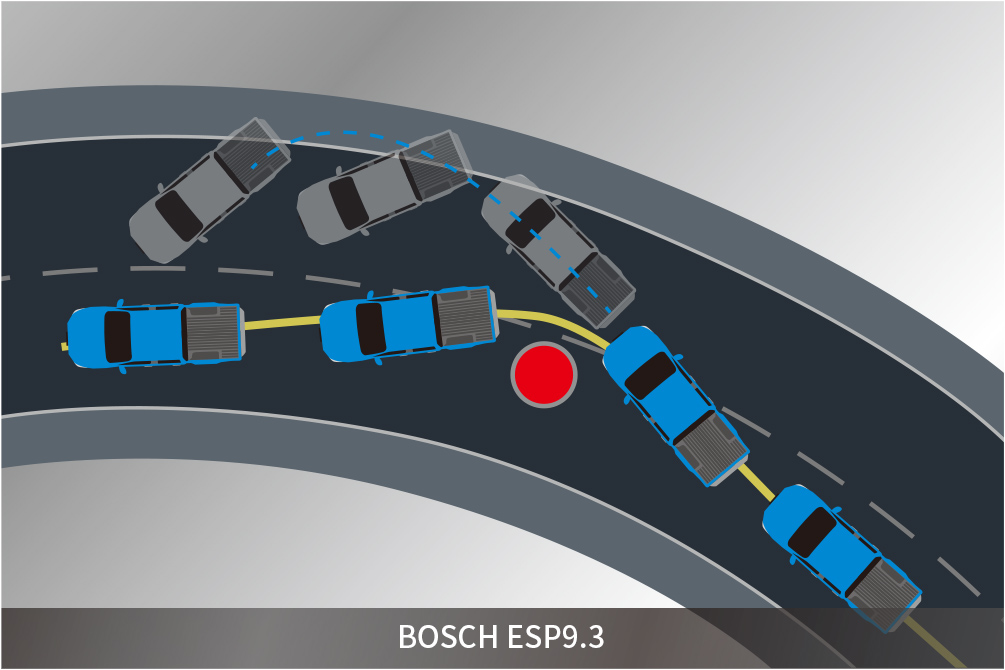

ABS+EBD+ESP - -
Tire pressure monitoring system - - - - - - - -
Body color rearview mirror+electronically adjusted+turning lamps(LED)
Interior anti-dizzle rearview mirror

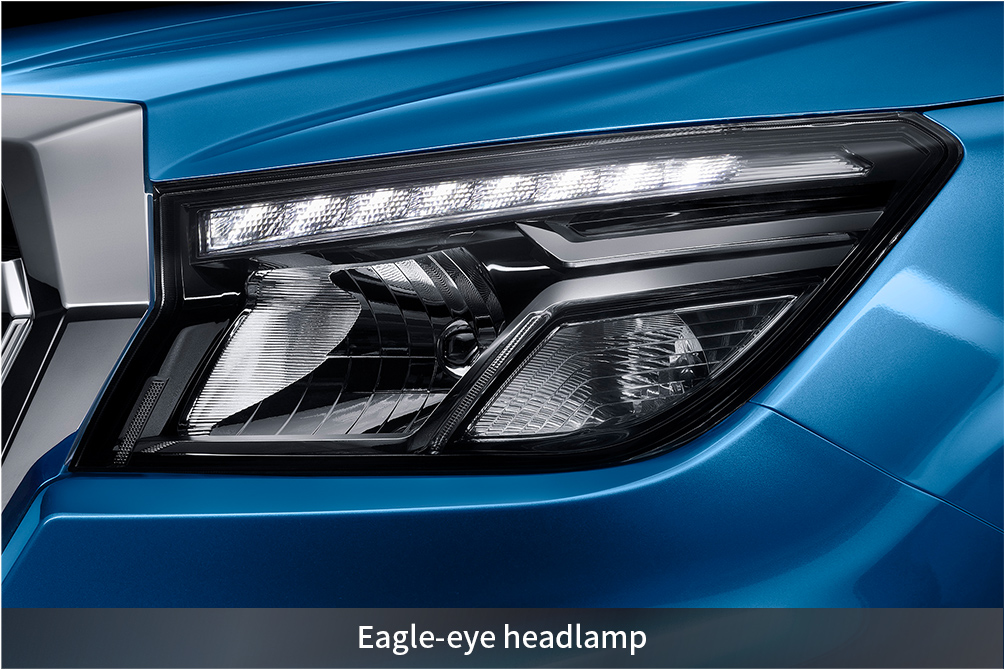

Electronically adjusted front headlamp
Front fog lamp
Front fog lamp(chromplated décor cover) - - - - - - - -
Rear fog lamp
LED daytime running light - - - -
Rearview camera - -
Parking sensor
Front safety belts (three points +hight adjustable)
Second-row safety belt (three points)
Engine underguard(resin)
Child safety lock
Audio-video system Radio AM+FM+AUX+USB - - - - - - - -

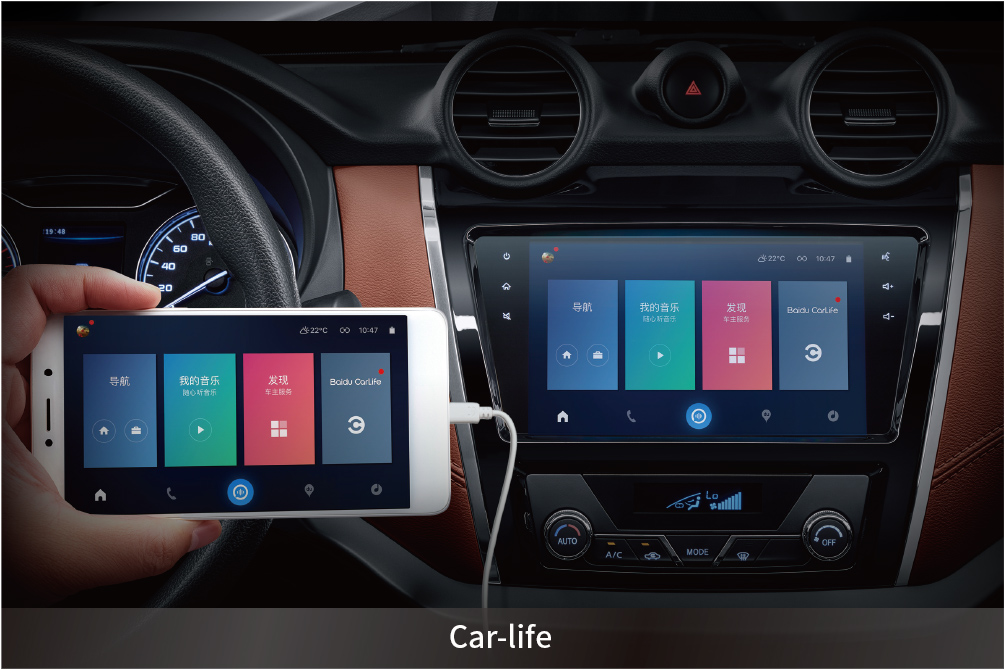

Multimedia system 7": bluetooth+carlife - - - -

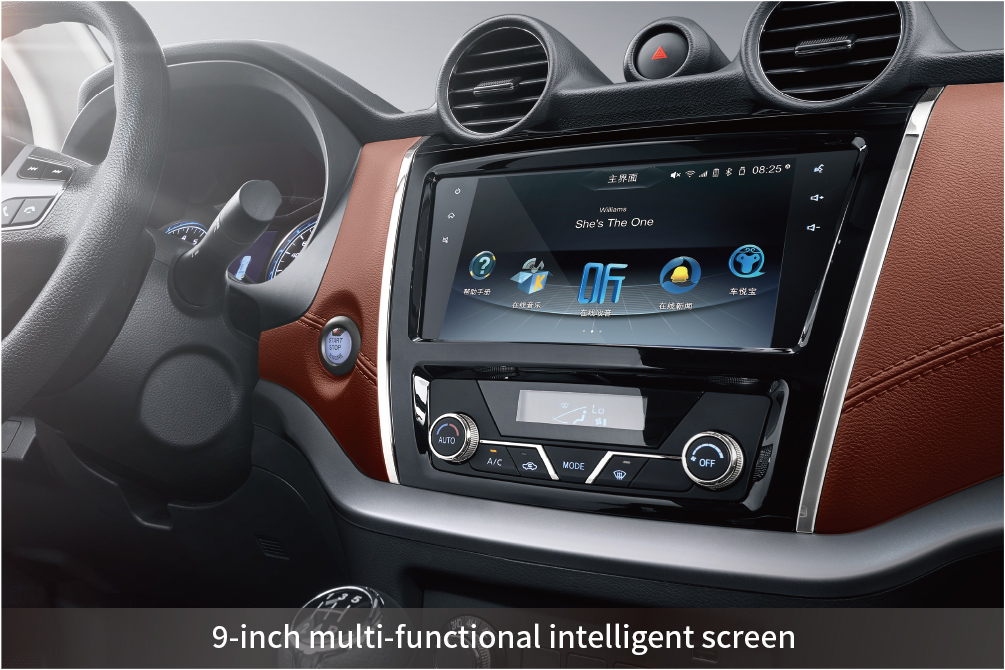

9": luetooth+carlife+voice control+WIFI module+OBD display - -
Loudspeakers 2 - -
4 - - - -
6 - - - - - - - -
Others Anti-rust coat (painted)
Rear cargo protective rack
(exterior rope hook)
Side pedal
Welcome side pedal (front door: plastic+metal+ZNA letter) - -
Roof rack - - - - -
Note:“●”Standard;“-”unavailable;“○”optional
ZNA reserves the right for any adjustment or amendment.
